Structural timber trusses. Traditional joinery. Engineered to specification.
(002)
Trusses
✤ ✦ ✤
The oldest standing structures in North America are timber-framed. Species, grain orientation, joinery. The right wood in the right application endures. We fabricate in reclaimed longleaf pine, antique cypress, and white oak. Mortise-and-tenon joinery. Spans to 40 feet. Dry-fitted in Louisiana before delivery.
Sourcing
Reclaimed: Gulf South industrial and agricultural structures, pre-1900. Old-growth longleaf pine, antique cypress. New-growth: managed North American and European forests. French white oak, select American hardwoods. All graded, kiln-dried, and inspected before fabrication.
✤ ✦ ✤
Max Width & Length
Chord members: 6x6 to 12x12 inches. Web members: 4x4 to 8x8. Clear spans to 40 feet. Reclaimed longleaf pine, antique cypress, white oak. All sizing confirmed during engineering.
✤ ✦ ✤
Dimensions
Joinery
Finishing
✤ ✦ ✤
Engineered in Louisiana. Raised on your site. Built to outlast the building.
Truss Configurations
001
King Post
Single vertical post. Ridge to tie beam. Spans to 24 feet. Minimal visual mass.
002

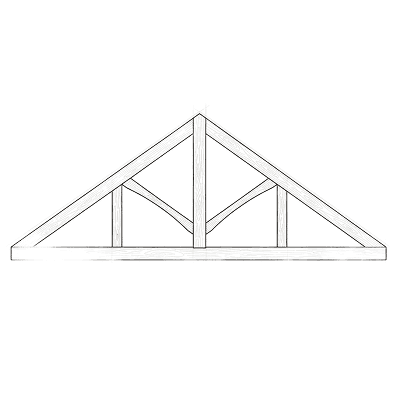

Arched Collar Tie King Post
King post variant with arched collar tie. Curved member adds visual warmth. Equivalent structural performance. Suited to formal living and dining spaces.
003

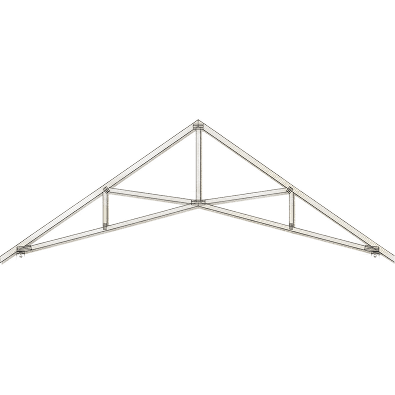

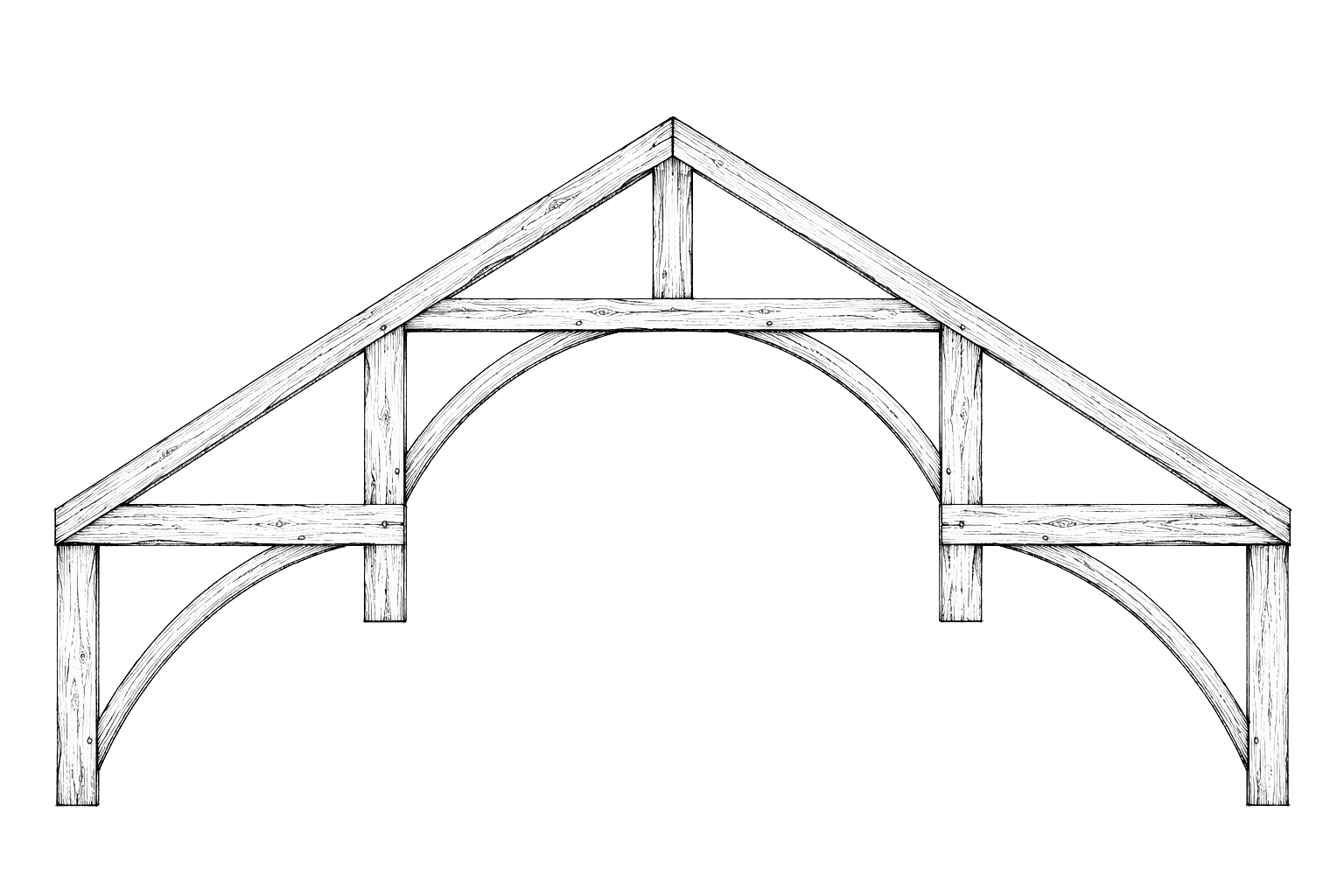

Scissor Hammer Beam
Hammer beam cantilever with scissor truss center. Maximum visual volume. Complex load path engineering. 30 to 40 foot spans. Lodge great rooms, chapels, double-height entries.
004
Queen Post
Two vertical posts. Span divided into thirds. 24 to 32 feet. Open center panel or decorative infill option.
005
Modified Queen Post
Angled struts replace vertical posts. Dynamic visual profile. Contemporary and transitional applications. Similar structural behavior to standard queen post.
006

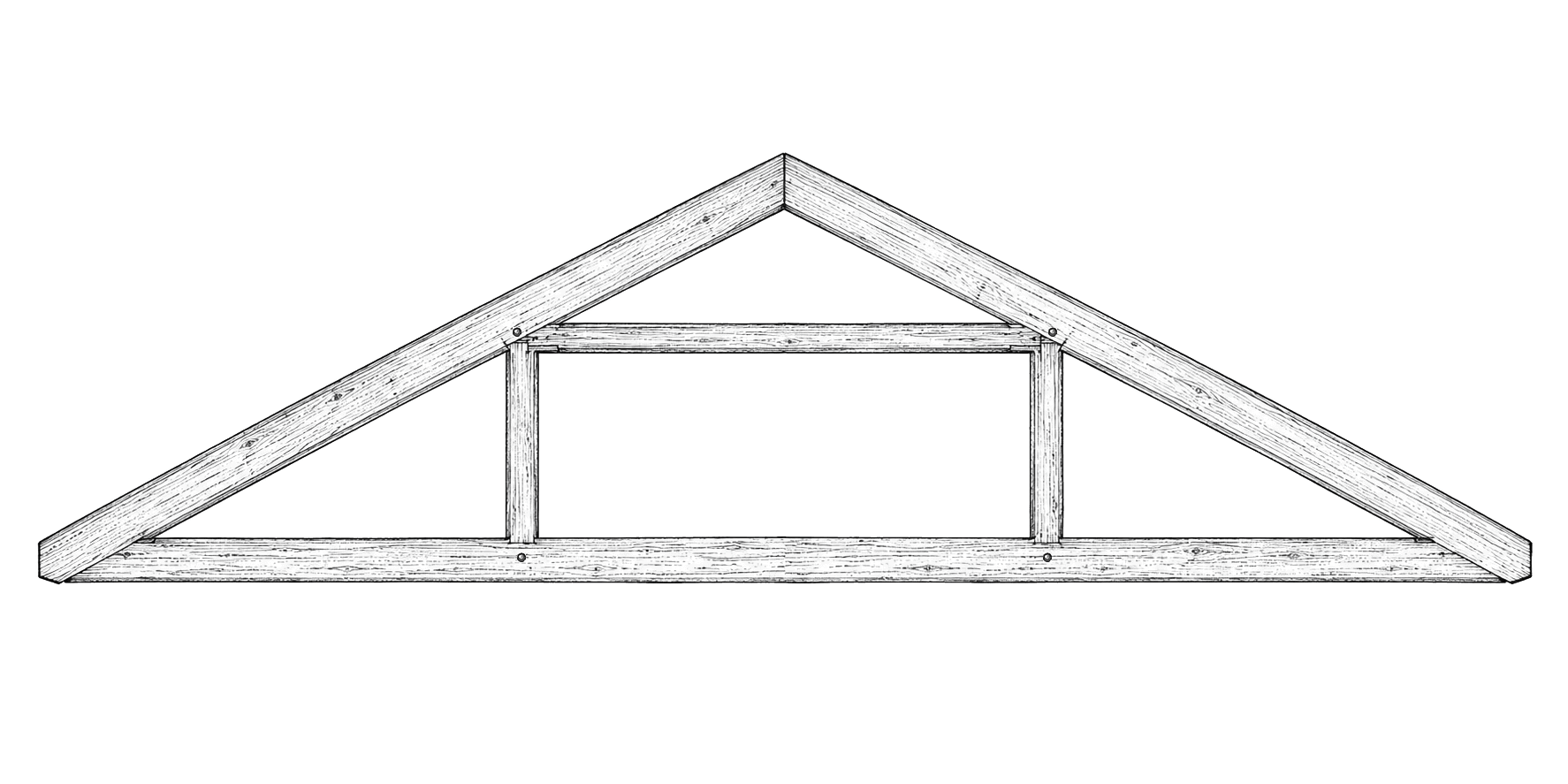

Queen Post w/ Straining Beam
Queen post with horizontal straining beam at post tops. Resists rafter thrust. Extended spans to 36 feet. Added visual depth from secondary horizontal member.
007
Arch Cord King Post
King post with curved bottom chord. Increased center clearance. Softer geometry. Suited to rooms with moderate plate heights.
008
Howe + Warren
Parallel chord trusses. Diagonal web members. Howe: vertical + diagonal. Warren: alternating diagonals. Long span and heavy load applications. Contemporary and industrial interiors.
009

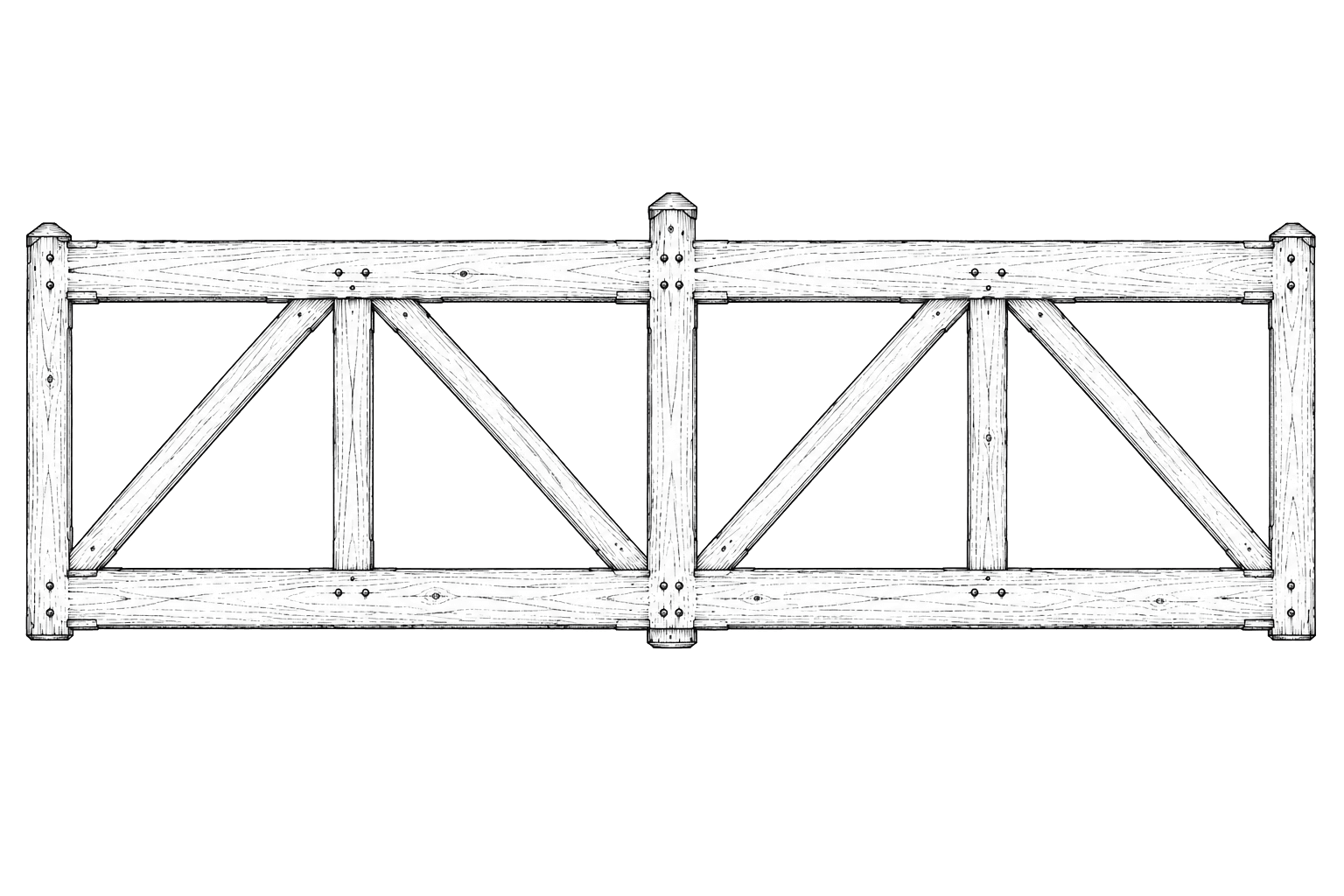

Parallel Chord
Flat top and bottom chords. Internal web members. Horizontal ceiling plane. Maximum visual restraint. Modern and minimalist applications.
Explore More Products
Start a Project.
Submit drawings or span requirements. Configuration, species, and sizing recommendations. Preliminary pricing.
